Engineered Bath & Shower Column Systems
Explore China's premier export-grade slide bar shower sets, designed for commercial hospitality, residential developments, and luxury sanitaryware brands.

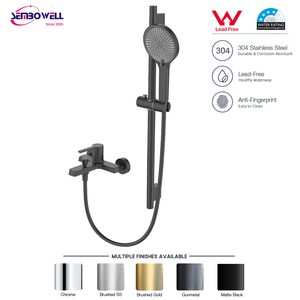

Bathroom Brass Shower Sliding Rail Set Handheld Shower Head Bathtub Faucet Wall-Mounted Sliding Bath Shower Set Ceramic Valve
Send an Inquiry

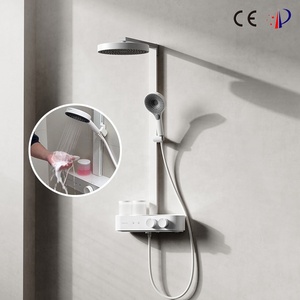

2026 Foaming Shower System Brass IPX5 Modern Wall-Mounted 300mm Round Rainfall Foam Shower Set With Slide Bar For Villa Home
Send an Inquiry

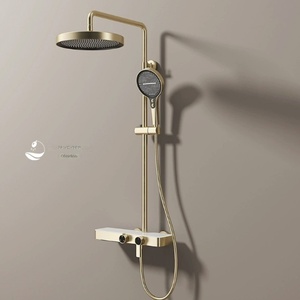

Bathroom Shower Set Complete Kit Rain Shower System Wall Mounted Brass Stainless Steel 304 High Pressure Slide Bar Chrome Finish
Send an Inquiry

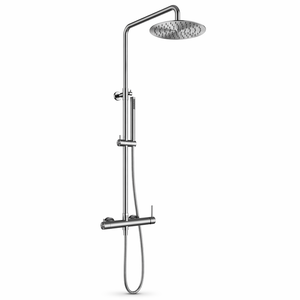

Modern Rain Shower Mixer Shower Valve Single Handle Ceramic Core Slide Bar Overhead Rain Handheld Lead Free SUS 316L Faucets
Send an Inquiry
Bathroom Modern Chrome Polished Stainless Steel 3-Function Sliding Bars Shower Column Set Soft Rain for Apartment Use Easy
Send an Inquiry

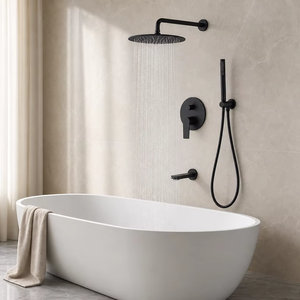

Contemporary Wall Mounted Conceal Shower Set Polished Black Finish Single Handle Ceramic Rain Showerhead Slide Bar for Bathroom
Send an Inquiry

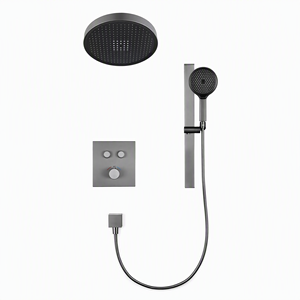

2 Function Shower Set Hot and Cold Brass Body Concealed Box ABS Rainfall Head Multi Function Handheld Shower Stainless Slide Bar
Send an Inquiry

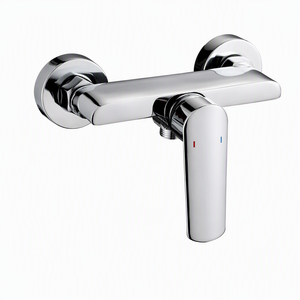

Brass Contemporary Single Rain Jet Bath Shower Mixer Faucet Set Slide Bar Ceramic Valve Core Chrome Finish for Apartment Hotel
Send an InquiryManufacturing Competencies & Technical Capabilities
Why leading global developers, wholesalers, and sanitaryware brands trust Chinese OEM/ODM sliding bar manufacturing hubs.
HPb59-1 Lead-Free Brass Metallurgy
Utilizing high-density gravity casting and low-lead brass alloys compliant with cUPC, NSF/ANSI 61, and European EN 817 health safety benchmarks.
PVD Vacuum Electroplating
Advanced Physical Vapor Deposition technology delivering superior surface hardness (HV>2000), fingerprint resistance, and corrosion stability across Matt Black, Brushed Gold, and Gunmetal finishes.
Hydraulic Micro-Bubble Technology
Integrated air-injection fluid dynamics offering up to 30% water conservation while generating plush, tactile micro-foaming spray streams optimized for luxury commercial spa setups.
Precision Ceramic Disc Valves
Engineered with 95% high-purity alumina ceramic valve cores (Sedal/Flüh compatible), guaranteed leak-proof under 1.6 MPa hydrostatic burst pressure tests.
Ergonomic Telescopic Railing
Height-adjustable 304/316L stainless steel slider rails featuring push-button locking sliders, wall-bracket adjustability, and anti-twist flexible shower hose connections.
Full-Spectrum OEM / ODM Logistics
End-to-end manufacturing services including custom laser engraving, bespoke packaging, CAD/3D prototyping, and international certification support (CE, WRAS, WaterMark).
China Top Slide Bar Shower Set Factories & Exporters: The Definitive B2B Procurement Whitepaper
The global sanitaryware market is experiencing a profound paradigm shift driven by urban modernization, hospitality infrastructure expansion, and surging consumer demand for luxury wellness experiences at home. At the epicentre of this evolution are China’s top slide bar shower set factories and export enterprises. Leveraging decades of manufacturing maturation, complete upstream industrial chain integration, and automated precision robotics, Chinese sanitary OEMs are no longer merely cost-efficient suppliers—they are leading pioneers in hydraulic engineering, surface science, and ergonomic bathroom architecture.
This B2B sourcing guide provides global procurement officers, hotel specification managers, real estate developers, and brand owners with high-gain technical clarity. From material selection and valve cartridge dynamics to surface electroplating benchmarks and 2026 purchasing trends, this whitepaper breaks down everything required to make risk-free, value-optimized global sourcing decisions.
1. The Strategic Value Proposition of Chinese Sanitaryware Manufacturers
China's key sanitaryware industrial clusters—located predominantly in Kaiping (Guangdong), Wenzhou (Zhejiang), and Xiamen (Fujian)—produce over 60% of the world's shower column and slide bar systems. The competitive advantage of partnering with premier Chinese factories rests upon three foundational pillars:
- End-to-End Vertical Supply Chain Integration: Leading factories operate fully integrated ecosystems encompassing raw alloy smelting, gravity casting, CNC precision machining, automated polishing, PVD vacuum coating, and hydro-testing under a single roof. This verticality guarantees complete traceability and eliminates middle-man margins.
- Uncompromising Quality Assurance Standards: Backed by industrial inheritances from powerhouse manufacturing frameworks, elite suppliers enforce 100% pneumatic pre-assembly testing, multi-stage water hydrostatic testing at 1.6 MPa, and rigorous 24-hour CASS (Copper-Accelerated Acetic Acid Salt Spray) finish verification.
- Agile OEM/ODM Prototyping: Utilizing industrial 3D printing and multi-axis CNC tooling, top exporters can transition a custom designer sketch into a production-ready brass slide bar prototype in under 14 working days.
2. Metallurgy & Material Science Breakdown: Brass vs. Stainless Steel
In high-end architectural procurement, specifying the correct alloy matrix for slide bars, valve bodies, and handheld brackets determines long-term structural integrity and regulatory compliance. The table below provides an engineering-grade comparison of key materials used across top Chinese factories:
| Material Designation | Copper / Metal Composition | Corrosion Resistance | Tensile Strength | Target Sourcing Application |
|---|---|---|---|---|
| HPb59-1 / CW617N Brass | Cu 57-59%, Pb < 1.9%, Zn Balance | High (Assisted by Electroplating) | ≥ 390 MPa | Luxury Residential, B2B Premium Faucets |
| Lead-Free Brass (C37700) | Cu 59-61%, Pb < 0.25%, Zn Balance | Very High (Dezincification Resistant) | ≥ 420 MPa | North American cUPC / NSF 61 Projects |
| SUS 304 Stainless Steel | Cr 18-20%, Ni 8-10.5% | Excellent (Passivated Surface) | ≥ 520 MPa | Modern Minimalist Apartments & Hotels |
| SUS 316L Marine Stainless | Cr 16-18%, Ni 10-14%, Mo 2-3% | Maximum (Pitting Resistant) | ≥ 620 MPa | Coastal Resorts, Yachts & Medical Facilities |
Lead-Free Brass Manufacturing Engineering
Commercial regulations across North America (AB1953, NSF/ANSI 372) and Western Europe (Drinking Water Directive 2020/2184) mandate stringently low lead migration. Top-tier Chinese slide bar factories utilize low-frequency induction melting furnaces to produce low-lead (CuZn39Pb2) and zero-lead bismuth/silicon-enriched brass matrices. Gravity casting molds are designed with optimal thermal dissipation geometries to prevent internal micro-porosity, ensuring that valve bodies withstand sudden thermal shocks without hairline structural fracturing.
3. Core Technological Component Analysis: Valves, Rails, & Aerators
A slide bar shower system is an assembly of interdependent dynamic sub-systems. Procurement decisions must evaluate each sub-component to ensure failure rates below 0.02% across project lifecycles.
A. Ceramic Cartridge Precision
The heart of any shower mixer set is its internal cartridge. Premium Chinese exporters standardise on high-density 95% Al2O3 ceramic disc cartridges. These ceramic plates are diamond-lapped to a surface roughness of less than 0.1 micrometers, creating a hermetic seal held together by atmospheric pressure and silicone lubricant. Key performance metrics include:
- Torque Smoothness: Operating torque maintained between 0.2 to 0.4 Nm even under 0.5 MPa pressure differentials.
- Thermal Endurance: Stable cartridge function across hot water supply extremes up to 90°C.
- Lifespan Certification: Full compliance with EN 817 and ASME A112.18.1 standards, exceeding 500,000 open-close lifecycle cycles without seal degradation.
B. Ergonomic Slide Bar Mechanism Engineering
The sliding bar rail serves a dual function: aesthetic vertical symmetry and effortless height adaptability for diverse family member statures. Premier factories utilize heavy-duty wall-thickness tubing (typically 1.0mm to 1.5mm wall thickness vs. budget 0.6mm alternatives). The slider bracket incorporates internal polyoxymethylene (POM) sleeves and dual stainless steel spring-loaded detents, offering smooth glide action combined with zero-drift locking force capable of supporting heavy brass handheld heads up to 2.5 kg.
C. Fluid Dynamics & Air-Injection Hydrodynamics
To comply with stringent water conservation codes (such as US EPA WaterSense standard capped at 1.75–2.0 GPM), modern showerheads employ Venturi air-injection fluid dynamics. By drawing ambient air into the water chamber via micro-constriction nozzles, the system mixes water droplets with air at a 3:1 ratio. This increases individual droplet kinetic velocity, giving users the sensation of a high-pressure, full-coverage rainfall spray while consuming up to 30% less total water volume.
4. Surface Finishing Innovations: Beyond Traditional Chrome
Architectural interior trends continuously evolve, demanding diverse metallic textures and colorways. Leading Chinese exporters have invested heavily in eco-friendly, high-durability surface treatment lines.
PVD (Physical Vapor Deposition) Technology
Traditional wet electroplating (Nickel-Chrome) is now complemented by PVD vacuum deposition. In a high-vacuum chamber, target metals (such as Titanium, Zirconium, or Chromium) are vaporized via arc discharge and deposited atom-by-atom onto the polished shower component. This forms a micro-thin, hyper-dense ceramic layer that exhibits:
- Unmatched Hardness: Surface hardness exceeding 2000 Vickers (HV), rendering the finish virtually scratch-proof during installation and daily maintenance.
- Enhanced Chemical Resistance: Immune to tarnish, chemical corrosion, acid-based bathroom cleaners, and salt breeze degradation.
- Architectural Color Palette: Infinite repeatability across luxury finishes including Brushed Bronze, Rose Gold, Champagne Gold, Pearl Gunmetal, and Velvet Matt Black.
5. 2026–2030 Global Sourcing & Procurement Trends
As global buyers refine their procurement strategies, several macro technological trends are dictating contract wins for Chinese slide bar shower set exporters:
Trend 1: Smart Thermostatic Push-Button Interfaces
Rotary knobs are rapidly giving way to intuitive push-button divert mechanisms. Diverter valves featuring piano-key style buttons allow users to activate overhead rainfall, handheld mist, and bath spout sprays simultaneously or independently with precise click feedback. Thermostatic cartridges engineered with memory alloy springs automatically compensate for sudden hot/cold water pressure fluctuations within 0.2 seconds, eliminating scald hazards.
Trend 2: Concealed Modular Wall-Box Installations
Modern luxury developments prioritize clean, flush wall aesthetics. Factories are delivering modular universal rough-in concealed boxes made of high-impact EPDM/ABS shells. These boxes isolate internal valve bodies from direct cement contact, allow post-tiling depth adjustments (depth tolerance of ±15mm), and permit future cartridge maintenance without dismantling expensive wall tiles.
Trend 3: Micro-Foaming Spa Hydrotherapy
Modern consumers seek spa-like tactile experiences. Next-generation 2026 shower models integrate specialized foam-producing showerheads that combine water, body wash, and air to deliver a silky, pre-aerated cleansing foam directly from the showerhead nozzle.
6. Factory Selection Criteria & Audit Checklist for B2B Buyers
To mitigate sourcing risks when selecting a Chinese slide bar shower set manufacturer, international buyers should apply a rigorous four-stage auditing checklist:
| Audit Dimension | Evaluation Parameter | Passing Industry Benchmark |
|---|---|---|
| 1. ISO Quality Infrastructure | Quality Management Certification | ISO 9001:2015, ISO 14001 Environmental System Compliance |
| 2. Product Certifications | Target Market Compliance | cUPC (North America), CE / EN 817 (Europe), WaterMark (Australia), WRAS (UK) |
| 3. Laboratory Testing Capabilities | On-Site In-House Testing Equipment | Spectrometer (Metal Composition Analysis), CASS Salt Spray Tester, Life-Cycle Testing Rig |
| 4. Social Accountability | Ethical Supply Chain Audit | BSCI, SMETA, or Sedex Audited Facilities |
Frequently Asked Questions (FAQ) for B2B Sourcing
Detailed expert answers to technical, operational, and commercial questions common in global sanitaryware procurement.
Q1: How do Chinese factories ensure lead-free compliance for strict North American & European markets?
Top exporters utilize certified low-lead brass alloys (such as HPb59-1, C37700, or CW602N Dezincification Resistant Brass) verified via spectroscopic analysis during raw ingot reception. Final cast valve bodies undergo acid washing leaching treatments to extract surface lead particles before machining, ensuring compliance with NSF/ANSI 61 and California AB1953 requirements.
Q2: What is the recommended wall thickness for stainless steel slide bars to prevent bending or sagging?
For commercial hospitality and high-use residential installations, slide bar tubing should have a minimum wall thickness of 1.0mm to 1.2mm. Sub-standard products with 0.5mm–0.6mm wall thickness suffer from flexural distortion when heavy brass handheld showers are mounted. High-spec factories use 304 or 316L stainless steel drawn tubing to guarantee high tensile resistance.
Q3: What standard salt spray testing criteria should be specified for high-humidity coastal projects?
Standard chrome finishes require a minimum 24-hour ASS (Acetic Acid Salt Spray) or 200-hour NSS (Neutral Salt Spray) test rating. However, for luxury hotels, coastal villas, or tropical resorts, buyers should mandate a 24-hour to 48-hour CASS (Copper-Accelerated Acetic Acid Salt Spray) test, which equates to several years of intense real-world humidity exposure without pitting or flaking.
Q4: How are custom OEM logos and bespoke private-label packaging handled?
Factories provide fiber laser marking directly onto brass valve faceplates, slide bar brackets, or showerhead rims with precision down to 0.05mm. For retail packaging, factories deliver custom drop-tested color boxes featuring high-density EPE foam inserts to ensure 0% transit damage during long-distance ocean container shipments.
Q5: What measures prevent thermostatic valve failure due to hard water scale accumulation?
Exporters incorporate stainless steel filter screens at the hot/cold check valve inlets to trap rust and debris. Thermostatic cartridges feature polymer anti-scald internal sleeves coated with food-grade silicone grease, along with self-cleaning silicone spray nozzles on overhead showerheads that allow users to dislodge lime deposits by simple tactile rubbing.
Q6: What is the typical Minimum Order Quantity (MOQ) and production lead time for customized orders?
Standard catalog models usually carry an MOQ of 50 to 100 sets per item. For full OEM customized finishes (such as custom PVD colors or specific handle designs), MOQs typically range from 200 to 500 sets. Production lead times average 30 to 40 days following sample sign-off and deposit confirmation.
Partner with China's Premier Slide Bar Shower Manufacturer
Looking for competitive B2B pricing, engineering customization, or factory direct OEM/ODM partnership for your upcoming architectural project? Connect with our global trade engineering team today.
