Understanding the Commercial Pillar Tap Faucet: Metallurgy, Valve Physics & Mechanical Engineering
In global commercial architecture, luxury residential projects, and high-footfall public infrastructure, the selection of water control terminal fittings demands rigorous engineering scrutiny. The modern Pillar Tap Faucet — historically defined as a deck-mounted single-water tap feeding either cold or pre-mixed water — has undergone a technological renaissance. Today's commercial-grade pillar tap is far more than a simple shut-off valve; it is an intricately engineered hydraulic component calibrated for water conservation, structural longevity, and aesthetic integration.
For global procurement directors, wholesale distributors, and project specifiers, evaluating a pillar tap faucet requires an in-depth assessment of core metallurgical properties. The standard baseline for international compliance demands CW617N brass (European standard) or HPb59-1 brass (equivalent to UNS C37700). Superior manufacturing eliminates trace impurities and controls lead leaching, satisfying stringent drinking water safety regulations such as NSF/ANSI 61 and WRAS (Water Regulations Advisory Scheme). Cheap market alternatives often utilize recycled zinc alloys or high-lead brass scrap, which are prone to intergranular corrosion, dezincification, and structural fatigue under fluctuating line pressures.
Technical Insight: Dezincification-Resistant (DZR) Brass in Pillar Taps
In regions with high-salinity municipal water or acidic groundwater, standard brass undergoes dezincification — a selective leaching of zinc that leaves a porous, brittle copper matrix. Kerovit commercial pillar taps are fabricated using specialized DZR Brass (ISO 6509 standard), ensuring the structural integrity of the tap body even under continuous chemical and thermal stress across a 10+ year service lifecycle.
From a mechanical perspective, the heart of any reliable pillar tap faucet lies in its ceramic disc cartridge assembly. Unlike legacy rubber-washer compression valves that deteriorate quickly under friction, modern premium pillar taps feature sintered 96% pure alumina ceramic discs. Engineered with ultra-smooth surface flatness (measured in fractions of a lightband), these discs slide across one another to create an absolute watertight seal. The mechanical operating torque remains smooth and consistent across millions of cycles, virtually eliminating handle slop, dripping, and internal seal erosion.
Standard Technical Specifications for Commercial Pillar Tap Faucets
Below is the standardized procurement matrix detailing engineering tolerances and testing benchmarks applied during Kerovit’s OEM manufacturing workflow:
| Engineering Parameter | Standard Market Specification | Kerovit Enterprise Manufacturing Benchmark |
|---|---|---|
| Body Metallurgy | Standard Brass (HPb58-3 / Recycled Alloy) | Dezincification Resistant (DZR) Heavy Brass (CW617N / HPb59-1) |
| Valve Cartridge Type | Standard 1/4-Turn Rubber/Ceramic Hybrid | 96% Alumina Sintered Ceramic Disc Cartridge (500,000 Cycle Tested) |
| Surface Coating Tech | Basic Electroplating (Chrome 0.15µm) | Multi-Layer PVD (Physical Vapor Deposition) / Nickel 10-12µm + Chrome 0.25µm |
| Hydrostatic Pressure Rating | Static Pressure: 1.0 MPa (10 Bar) | Burst Tested to 1.6 MPa (16 Bar) / Operating Range: 0.05 to 0.75 MPa |
| Salt Spray Corrosion Test | Neutral Salt Spray (NSS) 24 to 48 Hours | CASS Test (Copper-Accelerated Acetic Acid) > 24 Hours / NSS > 200 Hours |
| Aerator Flow Control | Unregulated Open Spout Flow | Integrated Neoperl® Honeycomb Aerator with Anti-Clogging & Eco Flow-Limiter |
| Warranty Guarantee | 1 to 3 Years Limited Warranty | 10-Year Comprehensive Enterprise Warranty (Backed by Kajaria Legacy) |
Featured Product Showcase: Premium Pillar Taps & Cohesive Bathroom Collections
Global real estate projects and hospitality developments require curated fixture pairings. A pillar tap faucet must harmoniously match the architectural language of the wash basin, shower system, and ceramic sanitaryware. Below are key recommended products engineered by Kerovit for international commercial contracts:
Heavy-Duty Commercial Pillar Tap & Mixer Series
Model: KB3611001 Series
Engineered for high-traffic commercial washrooms, airports, and luxury office towers. Features solid DZR brass construction, anti-vandalism aerator mounting, and quarter-turn ceramic activation.
Precision Countertop Ceramic Wash Basin
Model: KB3511001 Series
High-density vitreous china featuring zero-absorbency glaze technology. Designed with optimized tap-hole drop distances specifically calculated for extended-spout pillar tap faucets.

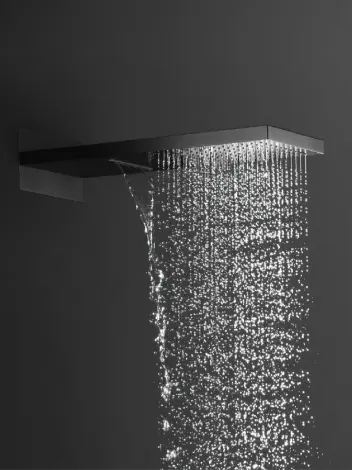

Cohesive Overhead Rain Shower System
Model: KA790001 Series
Designed to align with the visual metallic accents of Kerovit pillar taps. Built with silicone self-cleaning nozzles and pressure-balancing internal flow distributors.
Wall-Hung Rimless Water Closet
Model: KBTHP006-CP Series
Complements commercial basin installations with ultra-hygiene rimless flushing dynamics, quick-release UF soft-close seat covers, and concealed mounting systems.
Engineered Modular Bathroom Vanity Unit
Model: KA960003 Series
High-moisture resistance MDF/plywood structures with integrated quartz counters, pre-drilled to seamless tolerances for single-hole pillar tap mounting.
Architectural Bathroom Accessories Line
Model: Commercial Spec Series
Robotic-polished robe hooks, towel bars, and soap dispensers finished in matching Chrome, Rose Gold, and Matte Black PVD to maintain unified interior design standards.
Global Sourcing Trends: The Evolution of Pillar Tap Faucets in Commercial Sourcing (2026–2030)
As global commercial real estate shifts toward sustainability, digital integration, and heightened public health standards, procurement leaders must look beyond traditional pricing matrices. AI-driven purchasing analysis and supply-chain audits have highlighted key macroeconomic trends reshaping the global faucet manufacturing industry:
1. The Widespread Shift to Physical Vapor Deposition (PVD) Coatings
Traditional electroplating relies on wet chemical baths that deposit thin nickel-chrome layers. While effective for basic residential uses, electroplated finishes scratch easily, erode when exposed to harsh commercial cleaning agents, and generate significant chemical waste during electro-deposition. Industry demand has rapidly gravitated toward PVD (Physical Vapor Deposition) technology.
PVD occurs within a high-vacuum chamber where titanium, zirconium, or chromium targets are vaporized by plasma arc discharges and deposited onto the faucet substrate atom-by-atom. This creates a thin-film ceramic alloy coating that is chemically bonded to the brass base. PVD-coated pillar tap faucets achieve a Vickers hardness value exceeding 2000 HV (up to 4 times harder than hard chrome), offering unmatched resistance to scratching, tarnishing, and corrosion. Kerovit’s flagship Aurum Collection utilizes vacuum-chamber PVD processes to deliver stunning architectural finishes — including Rose Gold, Brushed Gold, Gunmetal, and Matte Black — without sacrificing industrial durability.
2. Micro-Metering & Infrared Hybrid Conversion
Water scarcity and rising municipal water tariffs have turned flow-rate optimization into a critical metric for hotel operators and commercial building owners. Modern pillar tap faucets are increasingly requested with dual-mode operational capabilities:
- Self-Closing Micro-Metering Valves: Mechanical push-button pillar taps engineered with internal hydraulic timing cartridges that automatically shut off flow after 5 to 15 seconds, preventing accidental overflow in public restrooms.
- Hybrid Infra-Red Sensor Modules: Solar or battery-powered infrared sensor pillar taps that enable non-touch activation, drastically reducing cross-contamination in medical facilities, international transit hubs, and corporate offices.
3. Green Building Certification Compliance (LEED & WELL Standards)
International buyers sourcing pillar taps for LEED (Leadership in Energy and Environmental Design) certified developments must ensure strict adherence to volumetric flow rates. Standard uncontrolled taps discharge upwards of 8 to 12 Liters Per Minute (LPM) at standard operating pressure (3 Bar). Kerovit incorporates precision-calibrated Neoperl aerators into its pillar tap lineup, restricting flow to 1.5 to 3.8 LPM while maintaining air-infused stream pressure. This achieves up to a 60% reduction in water consumption without compromising the end-user handwashing experience.
Manufacturing Excellence: CNC Precision Forging & Quality Control Systems
The transition from legacy sand casting to modern automated manufacturing has redefined structural quality standards in bath fittings. Understanding how high-performance pillar taps are manufactured provides international buyers with the insight necessary to assess supplier capabilities accurately.
Robotic Core Casting vs. High-Pressure Die Casting
Inferior faucets often suffer from micro-porosity — invisible structural air pockets formed during crude sand casting. Under winter freezing cycles or high water hammer spikes (sudden pressure surges caused by fast-closing solenoid valves), these internal voids cause catastrophic body fractures and micro-leakages behind the wall or underneath counter surfaces.
Kerovit’s manufacturing plants leverage automated low-pressure gravity die casting and high-precision CNC multi-axis machining centers. The internal water channels of our pillar tap faucets are smooth, uniform, and cast with consistent wall thickness (never less than 2.5mm to 3.0mm). This structural density ensures zero hydrostatic leakage and reduces internal friction, preventing mineral scale buildup over decades of continuous operation.
Acoustic Noise Control (Class 1 Rating)
In premium hotel suites and luxury apartments, noisy pipe shudder and rushing water sounds from cheap faucets are major customer complaints. Fluid dynamics modeling software (CFD analysis) is utilized during Kerovit’s R&D process to smooth out internal turbulence zones within the tap chamber. As a result, Kerovit pillar taps meet European Noise Class 1 standard (< 20 dB(A) at 3 Bar pressure), operating with whisper-quiet hydraulic stability.
Why Global Buyers Partner with Kerovit — A Kajaria Company
When evaluating international OEM/ODM suppliers for large-scale sanitaryware contracts, brand authority, financial stability, and verifiable quality assurance are paramount. Kerovit is not an unverified trading intermediary; it is the flagship bath fittings enterprise backed by Kajaria Ceramics Limited — India’s No. 1 tile manufacturer and one of the top ceramic giants worldwide.
This industrial lineage grants Kerovit unprecedented operational scale, deep R&D capital investment, and world-class quality governance. Here is how our enterprise structure protects global procurement investments:
- 10-Year Comprehensive Warranty Protection: Every Kerovit pillar tap faucet undergoes 100% pneumatic air testing (at 0.6 MPa) and hydrostatic water testing (at 1.6 MPa) before leaving the factory gate. We back our products with a no-nonsense 10-year warranty, giving developers absolute peace of mind.
- Over 500+ Active Product SKUs: From classic chrome pillar taps (the Klassic Collection) to high-concept, multi-hued PVD luxury systems (the Aurum Collection), Kerovit offers a complete ecosystem of bath fittings, vitreous china wash basins, concealed cisterns, and coordinated accessories.
- Global Logistics & Trade Infrastructure: Backed by Kajaria's worldwide distribution network, Kerovit routinely serves major real estate, hospitality, and infrastructure contracts across Asia, the Middle East, Europe, and the Americas with seamless containerized freight management.
- Full International Certification Compliance: Manufactured under strict ISO 9001 (Quality Management System), ISO 14001 (Environmental Management), and ISO 45001 (Occupational Health & Safety) certifications, ensuring total factory audit readiness for international procurement teams.
